Preparation:

This was another “fill-in” activation after dropping my wife off at her Physio rehab centre. A week earlier, I had tried to activate Haspelmoor, made one contact and then the radio failed on me, first with high VSWR on speech peaks and then with a “COMMUNICATION LOST” error between the head unit and body of the radio, even though they are bolted together, and no firmware upgrade has been performed on one half and not the other.

On getting home, the radio worked perfectly, and I was unable to recreate the issues. This activation, therefore, was to see if I could find the fault under EXACTLY the same circumstances (I packed a second radio as backup in case the problems reoccurred).

I had several hours for the activation and a chance to get lunch at the only open restaurant in the area (Tuesday’s most restaurants are closed). As it turned out, I had plenty of time to also activate the “4-fer” that I had activated in December, as it was on the route back to my wife’s physical rehabilitation centre. We have just come out of 2 weeks of sub-zero temperatures, but the ground is still frozen and partially ice-covered, so this meant that the activations would again be “PLOTA” activations from within the car, only stepping out to attach or adjust the HF-PRO2 antenna.

As usual, all radio gear was put ready in the car the day before, for this PLOTA.

The Activations

POTA DE-1136 Haspelmoor Flora and Fauna reserve

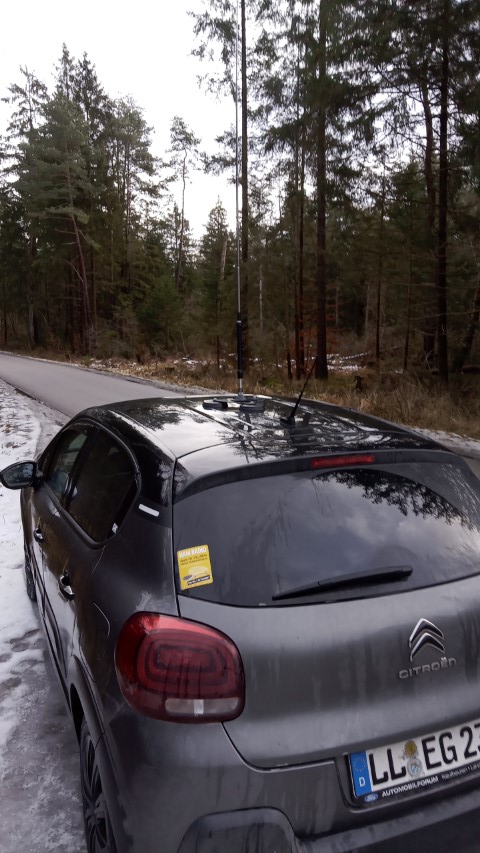

After dropping my wife off, having driven the route the previous week, it was a clear run down to the same parking spot next to a strange metal (artistic sculpture?) construction as last time in the forested Haspelmoor.

I started on 20 metres, catching one P2P contact into Wales where the activator was in a 3-fer POTA location. Following this a spot in POTA and calling CQ brought in 7 strong calls but thene the well known military digital QRM (OTHR) started wiping out the top of the band. Trying to find a clear frequency on 20m to QSY to was impossible as there was a contest on (normally contests are only allowed on weekends and this was a Wednesday). It turned out later that the increased contest activity were participants in the WWA “World Wide Award” which was running every day in January. It seems that by calling it an “award” rather than a contest, the organisers decided they could run it on weekdays aswell. It certainly has increased activity on the HF bands, but of course, for low-power portable stations, this is very bad news.

So to get away from both of these types of interference, I decided to move to 40 metres. Up to this point, the radio had operated perfectly, so I was starting to think the testing purpose of the activation might come to nothing. Conditions on 40 metres were not good; in this case, the atmospheric noise was high, and it took over ten minutes to just get 2 contacts. However, at this point, I started to see the High SWR on speech peaks problem again and had an idea. I changed the setting on the loading coil on the antenna just a little, to move it away from my calibrated position and then, while the base SWR after running the AATU sat a little higher, I no longer got the sudden high SWR peaks that I had been seeing.

I decided to switch back to 20 metres to get a few more contacts before driving to the restaurant for lunch. Dour more contacts followed in the next 10 minutes before I went QRT.

Regarding the high SWR on 40 metres, at the time, I wasn’t sure why this was happening. Perhaps the antenna’s adjustable coil was wearing out (I have had the antenna at least 8 years) – Perhaps the 3-magnet base?? At least I had a temporary fix for the time being. Later, at home, I think I may have the answer … The calibrations that I made with the antenna were with it on top of our Peugeot car. In the meantime, we have changed to a similarly sized Citroen car, and the actual “ground plane area” and type of steel, the magnetic mount is sat on, could easily give a different ground plane to the antenna. On the higher bands, the ground plane has a lesser effect than on the lower bands, such as 40 metres. It could be that I just need to recalibrate the antenna scale settings on the new car’s roof!

POTA DE-0466 Augsburg Statswald/DE-0942 Via Julia NHT/DE-0968 Romantische strasse/DE-1056 Lechauen

After lunch at a really old-fashioned German restaurant, I saw that I still had nearly three hours of free time before I would need to pick up my wife, so I decided to activate this convenient “4-fer” location on my way back in the direction of the Reha.

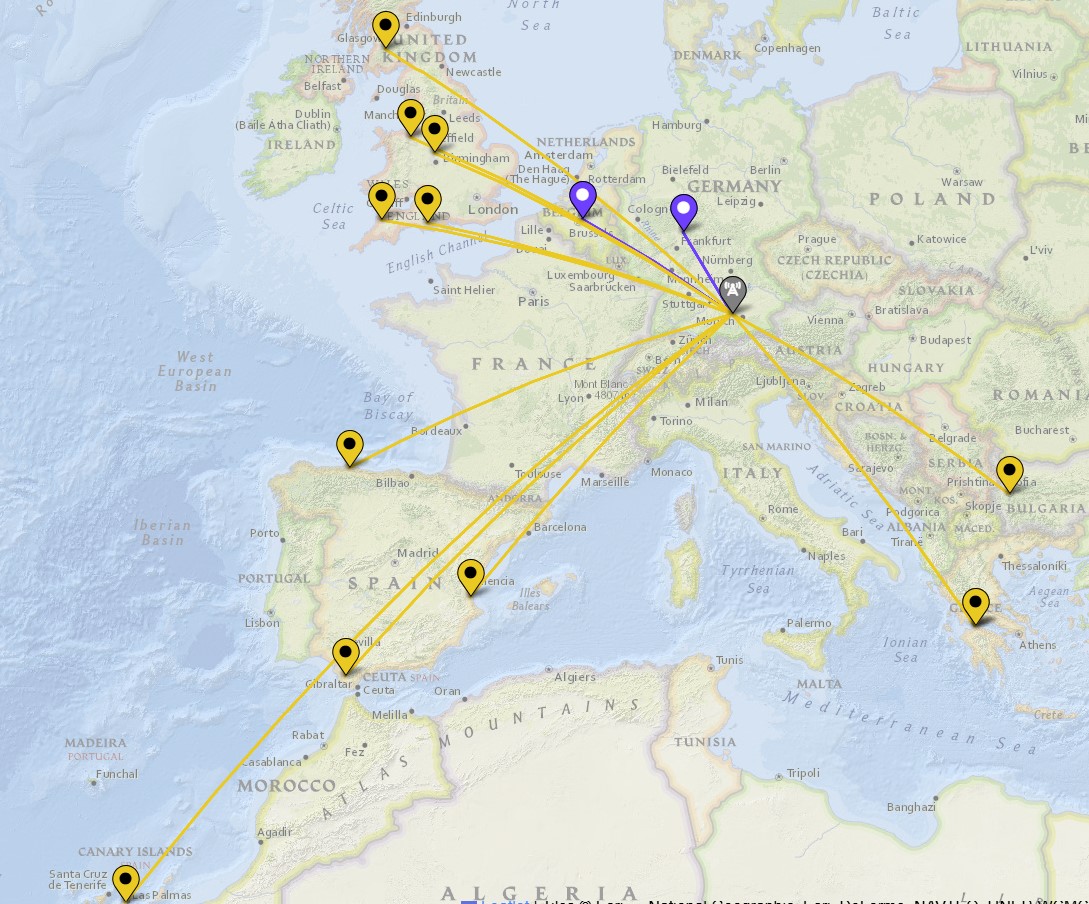

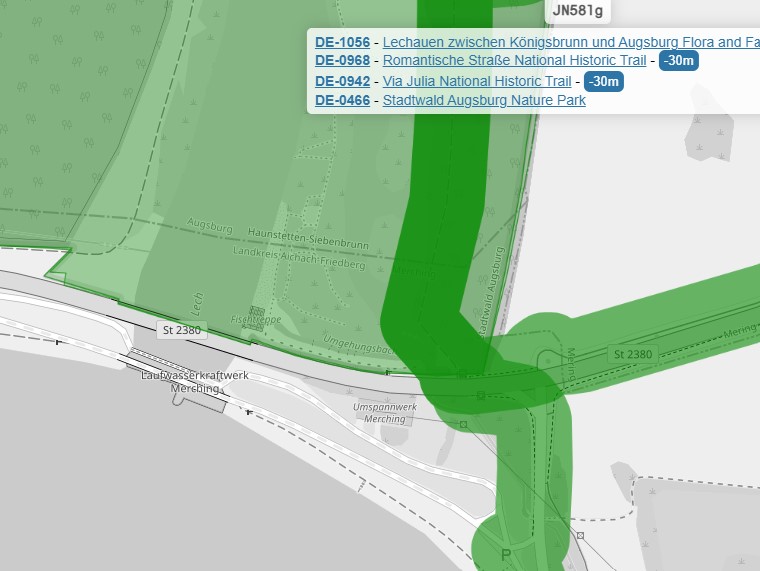

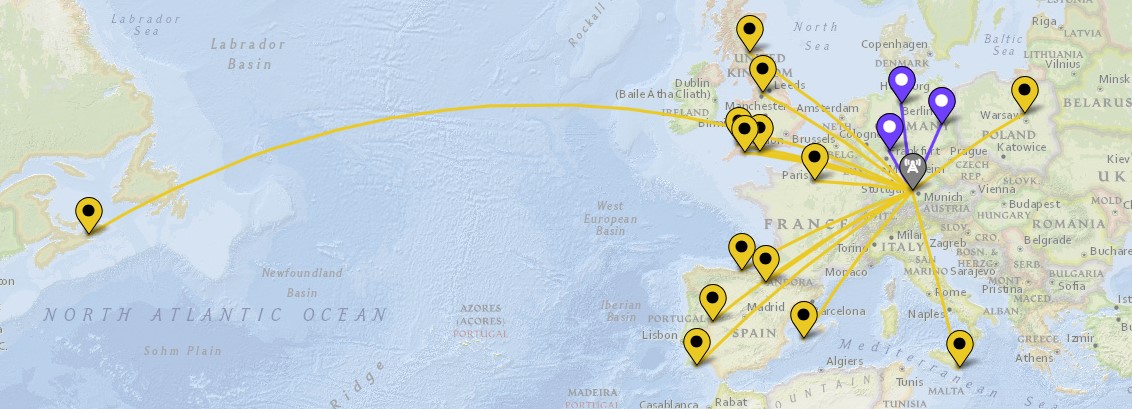

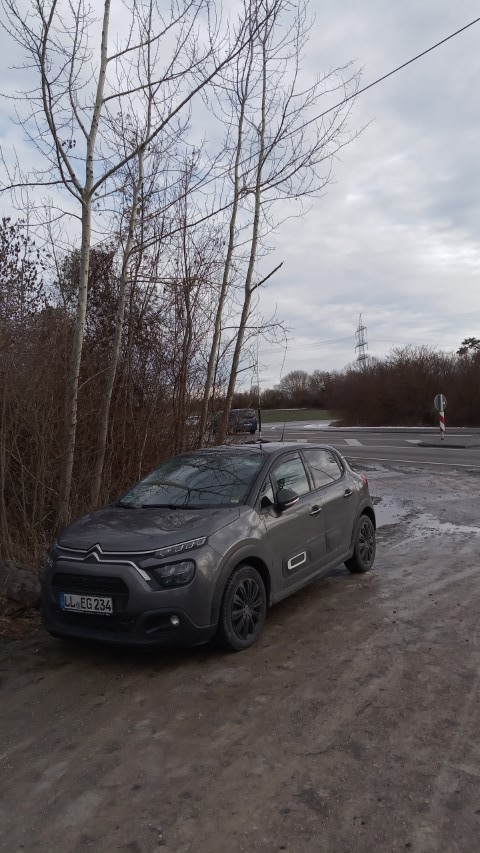

This activation took place early afternoon, not usually a good time for 20 metres contacts but I managed quite a few with the contact of the day being with VA1SEA in Nova scotia, Canada. Apart from that, all contacts were around Europe. The biggest problem with this location was that, being directly on a main road, the ignition and engine controller interference from passing cars and trucks on the wet road was horrendous, but as you’ll see from the map extract below, this “had” to be the location to get all 4 parks in one:

After 14 contacts on 20 metres, I switched to 40 metres, remembering to offset the setting on the loading coil. However, the QRM on 40 metres was even worse than on 20 metres, and I managed only three more contacts, all German stations. The main thing was that my quick fix of off-tuning the antenna worked again.

Once the QRM got too much, I decided to pack up and even had time to do some food shopping before picking up my wife and driving home.

Photos:

DE-1136

DE-0466, 0942, 0968, 1056

Equipment taken:

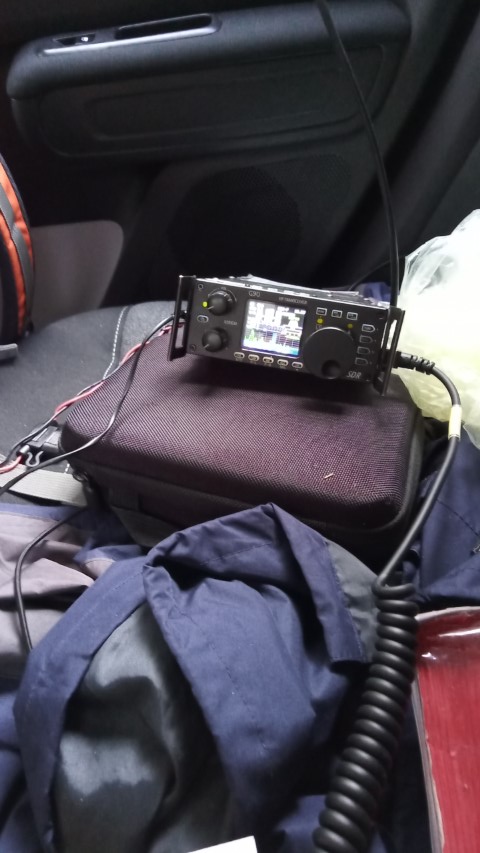

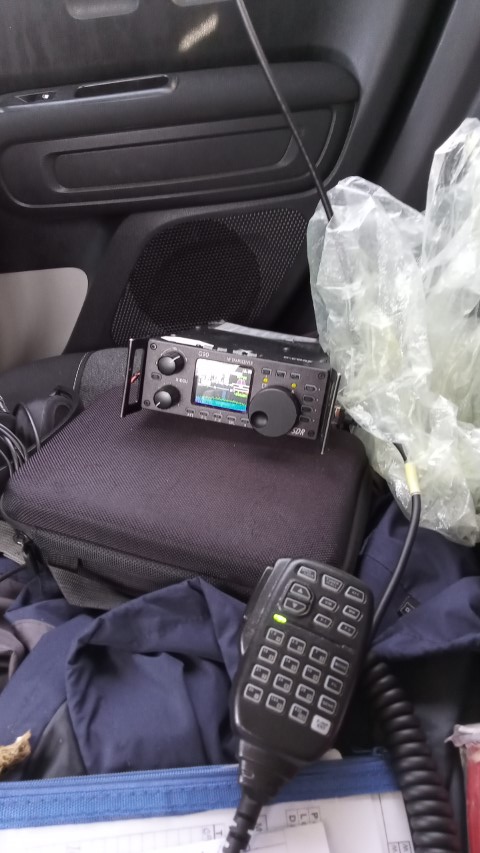

• Xiegu G-90 radio.
• Xiegu X6200 radio (not used)
• Komunica Power HF-PRO2-PLUS-T loaded vertical antenna.
• 3-magnet car roof mount and single magnet mount (single not used).
• 8 Ah LifePO4 battery.
• 2 x 4Ah Eremit LifePO4 batteries (not used).
• Lightweight headphones.
• Smartphone for spotting.

Log:

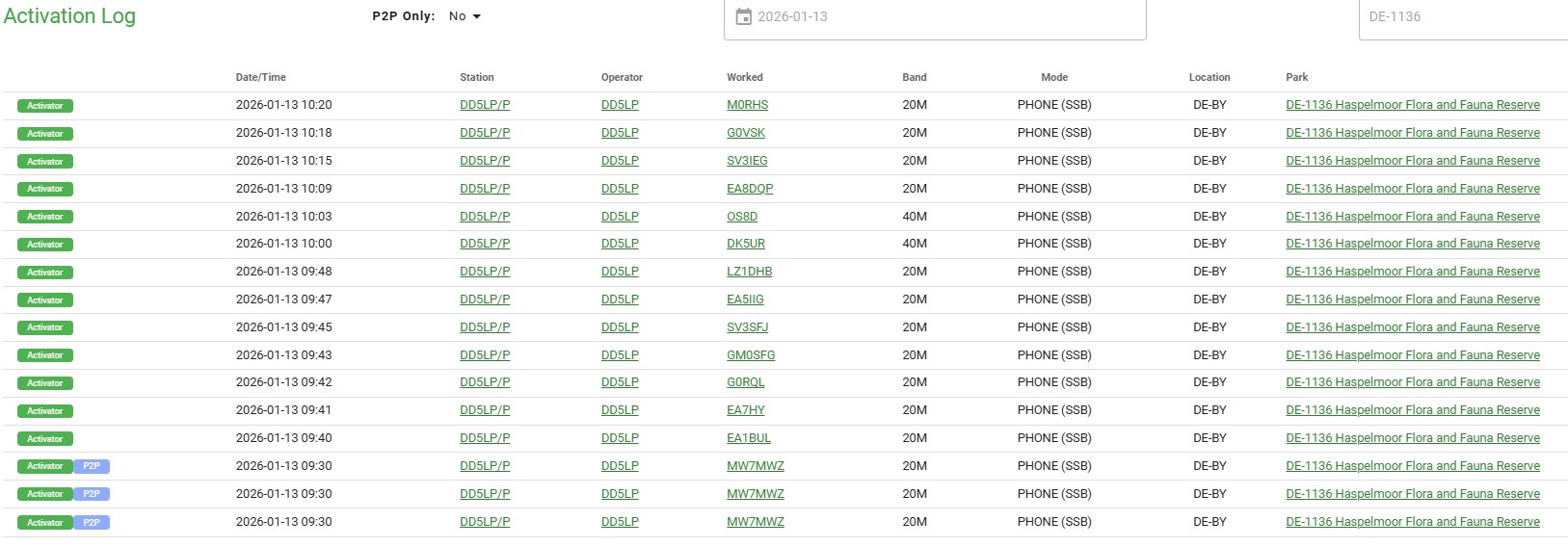

DE-1136

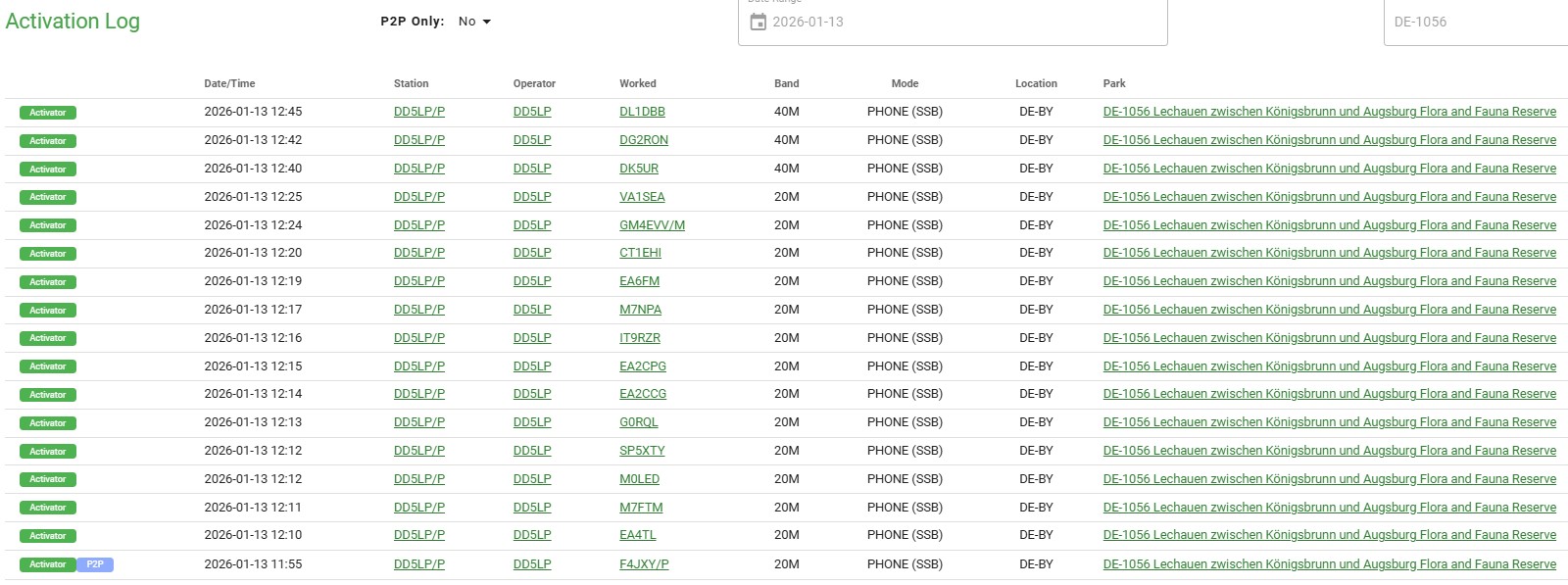

POTA DE-0466/DE-0942/DE-0968/DE-1056

Conclusions:

Overall, these two activations went well, and if I have indeed now found the reason for the earlier problems, it was worth doing the activations. That contact into Canada out of nowhere was the “icing on the cake” and VA1SEA must have a fantastic station set-up!

73 ’til the next activation!
