DD5LP/P – June 23rd 2021 – DL/AM-180 Berndorfer Buchet.

Preparation:

As we had now moved into hot summer days, where being on a summit later in the day was not be recommended, I decided to do an early morning activation when it was still cool. At the same time, I wanted to get a 40 metre Grey Line contact from a summit into ZL and possibly VK.

The conditions of late, hadn’t been so great and the SFI had dropped so it was quite possible that only a Grey Line propagation contact would be possible into VK/ZL and not the long-path F-Layer communication, but “who knows”? This would also be my second outing with the new XIEGU G90 radio.

Mike 2E0YYY kindly offered to go out to his local UK HEMA summit “Overmoor” G/HSP-021 at the same time and Ernie VK3DET and Ian VK3YFD would try to be listening from Victoria, Australia.

I decided on the one point Berndorfer Buchet summit as it is my closest summit and I hadn’t activated it in 2021 yet. My plan was to be operational by 0500 UTC (7am local time). so a short driving time means more time to wake up and have breakfast. Little did I know that there would be a road closure and diversion on my shortest route! The alarm was set for 05:30 local time and all equipment packed into the one (quite heavy) rucksack. The planned equipment was the new XIEGU G90 radio, battery box plus my new LiHV battery, my 6-metre mast with sun umbrella base and my linked dipole. As a backup, I would have my OCF dipole and the loaded HF vertical/tripod/radials configuration (hence the heavy backpack).

The Activation

The trip down to Berndorfer Buchet normally takes 20-25 minutes but this day, the council had decided to do renovation work on part of my route adding 20 minutes to the first half of my journey and so dropping me into the time when many tradesmen are heading to work to be further delayed on the small country roads where overtaking is almost impossible. The result being that I arrived at the car park at Kerschlach around 7 am local time – when I had hoped to already be operational on the summit. It was raining and there was a cold, wet mist around. This was only to clear up and the sun to come out when I was packing up three hours later. I set off through the forest and up to the summit getting the gear set up and operational by 0520 UTC. As a change to my normal installation, I ran the linked dipole east-west rather than north-south. While at this height, the antenna is omnidirectional, the advantage of running it E-W is that it runs along the small ridge of the summit rather than down each side and hence the ends of the Inverted-V configuration are a little higher.  My first contact was with Mike 2E0YYY/P (so is that an H2S or an S2H contact?)  in any case he told me he had just worked Ron ZL4RMF in Dunedin, New Zealand (I often work Ron from my home station and he is always a pleasure to work), so I said 73 to Mike and headed off to find Ron – there he was a solid 55 signal but by now the pileup had arrived and I had no chance of getting through. When the hub-hub did finish and I might have had a chance, Ron either went off to 80 metres or for his evening meal. I did not have an easy way to check the DX Cluster (I must add a cluster monitoring app to my phone). Had I been on the summit 20 minutes earlier, it may have been before the amateurs in the UK could hear Ron and I think I would have had a good chance of a QSO with him as he is also in a location with a low background noise level. What I did realise during this activation was how the receiver in the new rig excels with no local “metro-noise” I was hearing lots of stations such as Jim E51JD in the south cook islands but with the high powered callers, again I had no chance of getting through although I’m sure he would have heard me.

During the 3 hour activation (a long one for me) I heard at workable strength’s ZL4RMF, Ron, (40m), E51JD, Jim (20m), VK3YFD, Ian (twice) 20m and K9TK BOOMING in from Florida on 20m. There was also some quite deep QSB on 20m, but I suspect this was related to the MUF only just getting above 14 MHz earlier in the activation.

What this outing has proved to me is when you get a good radio outside, even just with an inverted-V dipole at 5m AGL – you can hear the world! The problem is that with all the other impatient mega-watt home stations, the DX stations don’t often get a chance to hear lower power stations.

The SDR and waterfall proved useful when looking for a clear frequency but that didn’t help the one time when, by accident, I chose the SSTV calling frequency (14230) – oops -sorry! Even after finding a valid free frequency and checking it is free what often happens is that some idiot starts up 1-2 kHz off your frequency with modulation set far too high and never checks before calling! GRRR!

This was the longest activation I have done for some time with almost 3 hours on the summit. I actually managed to drain one of my 5Ah Lipo batteries so that the G90 reduced output power drastically at about 9v on load (receive kept working perfectly). I have two 5Ah Hardcase Lipos in my battery box, so it was just a matter of swapping the cable over and I could continue. Had it been needed, I also had a 4Ah LiHV battery in my bag as well.

Although it would have been nice to make a contact into VK or ZL during this activation, I am happy with the outing – I have 36 contacts in the log, including one H2S and one S2S contact and most importantly I have a station in one rucksack with everything needed, including a mast – a mast foot – a tripod mount with radials, two inverted_V antennas (one linked dipole, one OCF) and a loaded vertical that can do 80m through 70cm.

The G90 receiver, now that I am a bit more used to using it, is amazing! Certainly IC7300 class if not better and when I have been received, I have only had good comments about the transmit audio and I ran the whole time with speech compression on today.

 Photos:

This slideshow requires JavaScript.

Equipment taken:

  • Mountaintop travelling 40-litre rucksack.
  • Xiegu G90 transceiver.
  • Battery box with 2 x 5000 maH 4S LIPO batteries.
  • 4000 maH 3S LiHV battery (not used).
  • Komunica Power HF-Pro2-PLUS-T loaded vertical antenna (not used).
  • Modified mini photo tripod with clip-on radials (not used)
  • Lamdahalbe 6m mini-mast.
  • Screw-in sun umbrella base.
  • SotaBeams linked dipole.
  • Aerial-59 OCF dipole (not used)
  • Painters thick plastic sheet.
  • Lightweight headphones.
  • Smartphone with PocketRxTx App and USB cable acting as an external display to the rig. (not used).

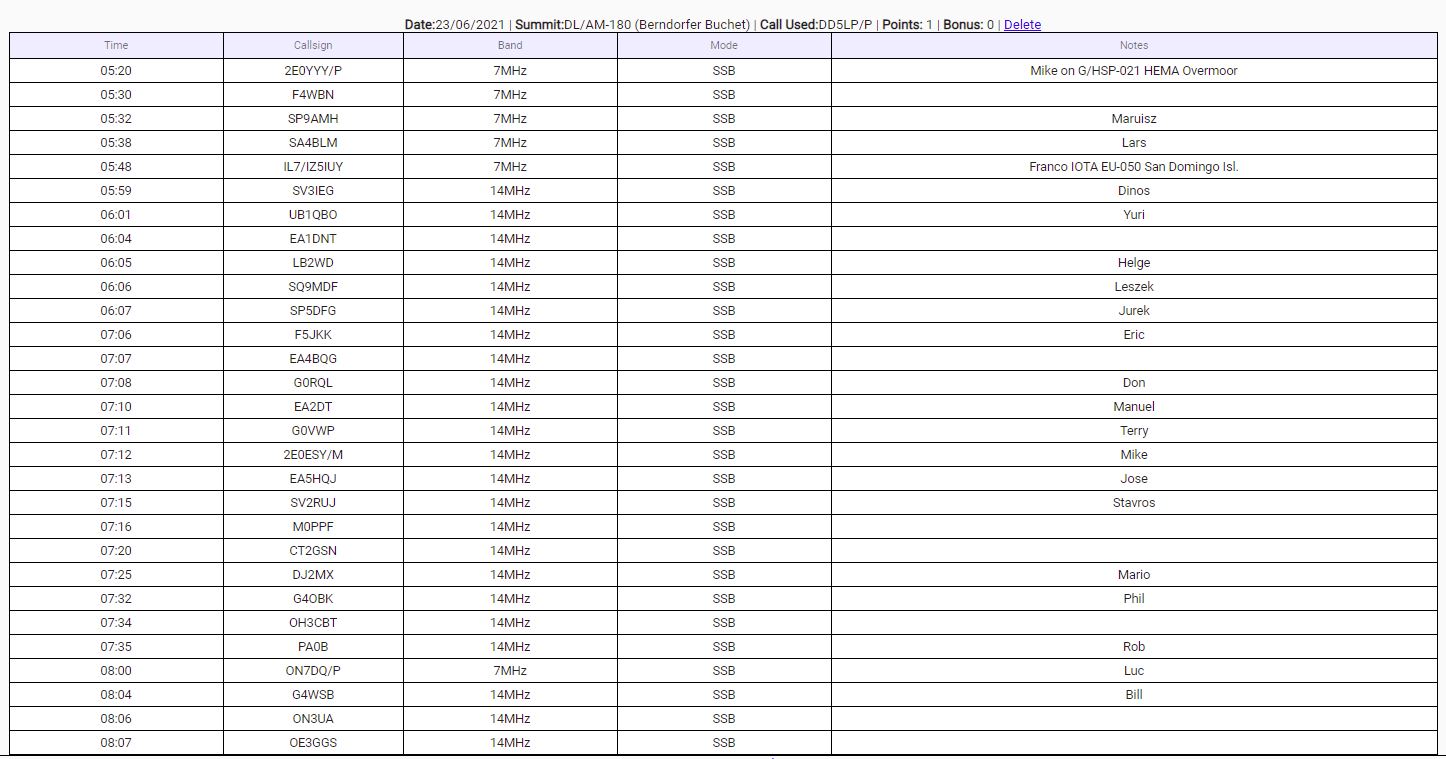

Log:

Conclusions:

  • The G90 performed brilliantly – the receiver combined with the spectrum scope/waterfall, despite its small size, is really useful
  • I need to add an easy to use DX-Cluster displaying app to my phone, to see where the DX stations have gone to.
  •  That 20 minutes delay with the road diversion was a problem and now I know it’d have been quicker to have turned around and taken a different route rather than follow the signposted diversion.
  • Running the antenna at 90° to my normal direction seems to be better, perhaps only because having the ends of the Inverted-V higher does help?

73 ’til the next summit.
