DD5LP – July 15th. 2014 – DL/AL-282 Steig, DL/AL-149 Blender, DL/AL-281 Ursersberg and DM/BW-088 Rangenberg.


As you will see from the title, this was a multi-summit activation. I initially was looking for the next summit that I had not yet activated and looked at Blender, when I saw that Urserberg was just across the valley from it and given the fact that the summit was over 2 hours drive away from my current home I thought I’d activate the two summits on the same excursion. When looking at my route, I also realised that Steig was also not too far off my route and made that the third planned SOTA summit in the Allgäu district of Bavaria that I would try to activate. As I had never been anywhere near these summits, there was always a chance that I would not be able to get access to one or other of the summits, so as a reserve, I decided to add a summit over the border in Baden Württemberg – a summit which gets activated a lot, mostly around the time of the Ham Radio event in Friedrichshafen as activators often fit this summit, DM/BW-088 Rangeberg, in their route to or from Friedrichshafen. I had planned to activate it on my way back from Ham Radio at the end of last month however with a torrential storm on the Sunday, I ruled this out. As it turned out the first three (DL/AL) summit activations went so well, that I managed to fit in Rangeberg as well. This was a bonus as this DM summit gives 8 points whereas the other three summits, in the same general area and at around the same height only give 1 or 2 points.

I also wanted to give my new mast and antenna a further test and compare it with my old equipment. With the limited time I could not set up both antennas and masts on any of the sites, so although I used each set-up on two summits, the time of day and locations were different and so I cannot draw any conclusions apart from that both configurations work well and the new one is heavier to carry to the site, mainly due to the 10m vs. the 6m mast.

I still have been unable to repair my Ramsey QRP amplifier so these activations were “barefoot” with just the 5w from the FT-817.


The Locations:

Three of the sites are in DL/AL (Allgäuer Alpen) and the “extra” one is in DM/BW (Bathe Württemberg). The closest location is probably accessible in under 2 hours, the other three a little over 2 hours, from where I am currently staying. As I hoped for a possible long path contact into VK from the first summit, an early (pre 7am) start was planned.

Apart from a couple of “whoops missed the turn-off” moments (I was navigating using a printout from Google Maps), the sites were not too hard to find. Steig has a nice car park at the edge of the forest from where a 10-15 minutes walk is needed to get to the summit. None of the summits chosen this time have any marker (Cross, Trig point etc.) at their summit, but two, the first one (Steig) and the third one (Ursersberg) have small wildlife look-out towers on the top of them, which serve well as antenna mast supports! Ursersberg is some distance from the car park near the lake – far too far for my timeframe, so it was a matter of driving up the well maintained track, which was labelled as forestry access only, while not 100% correct, it appears when one asks locals, they pay no attention to these signs and don’t expect others to either. For future activators, who prefer to walk, 25 minutes should be enough to walk along the track to the summit. The second summit Blender, is up a series of roads which are marked for local access only. Again while not 100% correct, use of these sealed roads by none residents does not appear to be policed in any way. As there is a residential care home near the summit, none locals do regularly use the roads to visit patients. For future activators – your choice. Perhaps take a push bike along for the final sections of these two summits as the signs relate to motor vehicles only.

The final summit of the day (Rangenberg) also had a car park at the entry of the forested area. I had considered driving into this site as well, however as I had time, I decided to walk from the car park the sign posted 1km (I think it was more!) steep and in places muddy climb to the summit. It took me about 20 minutes. When I got to the summit, I could see down the track going down the other side what looked like a copper building about large enough to be toilets but more important alongside it a table and benches – luxury for a SOTA activation. Checking the map this was less than 25 vertical metres down from the summit and hence still in the permitted SOTA activation zone. As I got closer I saw a small bell on the roof and realised this was in fact a very small chapel. The roof was copper and the sides covered with light brown wooden tiles. This looks to be a very new addition to the summit (see pictures later). Reading the sign on the door, It is only planned to be blessed in September 2014, to be called the “Alphornkappelle zur heiligen Cäcilia”. So this is a very new addition to the summit. This last summit was the physically hardest summit to get to with the long steep walk but with the best facilities for SOTA and of course, being in DM/BW 8 points for activator and chasers rather than the 1 or 2 points of the previous summits.

The Activations:

Steig DL/AL-282

I was hoping to manage a long path contact back into VK with this summit however band conditions weren’t good on 20m. It was quite hard going to get the minimum 4 contacts that I was eager to get in the log so that I could pack up and head off to the next (hopefully better) summit and perhaps, just perhaps manage to get all four summits activated in one day. It took about 10 minutes before I could get even one contact. I was just about to start checking all the equipment (this activation was using my new antenna), when Colin G4UXH came back. Over the next 10 minutes I bagged another 5 contacts, so I quickly packed up and headed back down the forest track to the car. Hopefully the next site would be better…

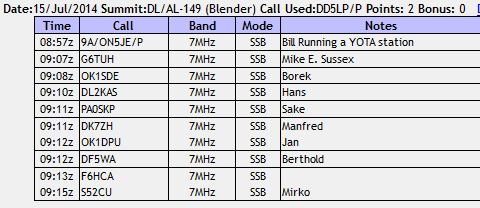

Blender DL/AL-149

  This was a bit of a drive from Steig, going part way around Kempten and then heading off on several small roads. As I approached the area however it became very obvious where I was heading. The Television/Telekom tower is visible for miles around (in fact it was also still visible at my next summit). As mentioned earlier, access roads to Blender are marked as local access only. Until someone points this out to me though, I was happy to drive up the roads. I met one elderly lady out on her bike, who had cycled to the top to take in the view (I wish I could cycle up that hill as she did!). We had a short chat and I said that I was an Amateur Radio enthusiast and she knew what I was talking about. It seems AR in Germany is much better publicised that in other countries in which I have lived! After setting up I tuned around 40m and found Bill 9A/ON5JE/P operating a station for the Youth On The Air (YOTA) week. I then found a free frequency, spotted myself and put out a call. I bagged a further nine stations in just under 10 minutes. All signals from this summit were stronger than at the previous although reports given to me were not better. Was this the antenna? I had switched back to my linked dipole for this summit. Without also putting up the new antenna and doing a direct comparison, I can’t say. I think the location was simply better, I was also on 40m rather than 20m and of course this was now later in the day. Time to try summit number three…

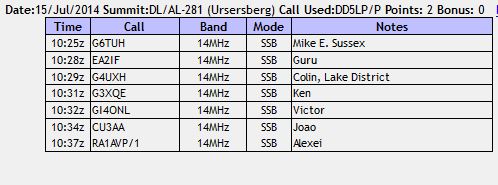

Ursersberg DL/AL-281

  This was a far shorter drive, back down the valley across and up the other side. Ursersberg is again in a forest above the top of some small ski lifts. Access is via a road marked as for only forestry vehicles. Never mind, after checking my map in the car park at the main road, I drove up the track, hoping not to meet a forestry vehicle coming the other way. The track is walkable and in fact on packing up I met a family who had walked up and amazingly again, the father knew all about Amateur Radio through a father at the monastery school where he was as a child having a station within the school and several large antennas outside! On arriving I had to walk a distance from the only place to park off the track, to find some way to get through all of the brambles and nettles that have taken over this forest. I eventually found a track and it led to a lookout tower similar to the one on Steig but in a somewhat worse condition. I decided to use the linked dipole again from here this time on 20m as en-route I had seen spots for three other summit activations on 20m. I didn’t manage to catch even one – either they had moved on or they were far too weak for me to hear (In one case I could hear chasers calling, but not the activating station). I did manage seven contacts in about 10 minutes. I considered switching to 40m to perhaps capture some more but decided rather to pack up and squeeze in the fourth summit activation for the day.

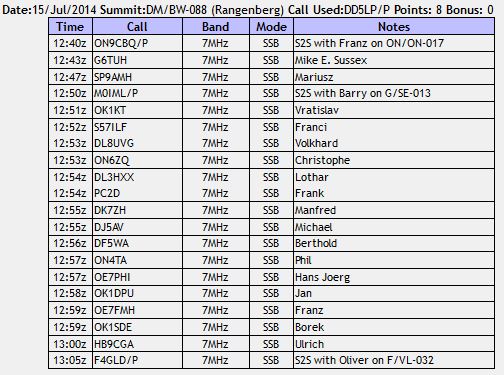

Rangenberg DM/BW-088

  While not as close as the last two summits, the trip to the last summit of the day took only around 20 minutes. That was to the car park. The walk up the hill with both sets of gear, took a further 20 minutes. I decided to give the 404-UL antenna another try along with the new 10m mast, admitedly probably only at about 8 metres as the support I was using (a fence post) was not totally secure! The luxury of being able to set up and operate from a table and seating bank at the end of a long day cannot be beaten. This is the site I made the most contacts from with twenty in all and three of those Summit-to-Summit contacts. I only used 40m as it seemed to be the better band on the day. This also meant that I had run both my old antenna configuration (6m mast and linked dipole) and my new antenna configuration (10m mast and Aerial-51 404-UL asymmetric dipole) on both 20m and 40m. I had thought of putting both configurations up at this last site and had carried both up the hill, however I was getting tired and there was still a long drive home, so I decided that I will plan an activation just to compare the antennas another time.

Here are some photos from each activation –

1. Steig.

This slideshow requires JavaScript.

2. Blender.

This slideshow requires JavaScript.

3. Ursersberg.

This slideshow requires JavaScript.

4. Rangenberg.

This slideshow requires JavaScript.


Steig & Rangenberg

Yaesu FT817ND

Aerial-51 404-UL asymmetric dipole

DX-Wire 10m “mini-mast”.

Blender & Ursersberg

Yaesu FT817ND

SOTABeams linked dipole

6m “mini-mast”.












No true comparisons of the antenna systems could be made. It was interesting that after 4 activations using the internal LIPO in the FT817 it still had 25% of it’s charge left at the end of the day. So I didn’t need to carry the extra weight of the two external 5000mAH LIPOs to each site.

I need to plan an activation, just to compare antenna systems from a known good location – I may combine this with the upcoming VK1 SOTA activation day on Sunday 27th. July.

A little extra power, especially on 20m would be an advantage, even if only the 10-14w that the Ramsey amp used to give out.

Lessons learned –

The idea of multiple activations in one day, while operating alone, is no fun and I will probably not do it again for a while.

73 ’til the next Summit!
